SERIEs 1400 E 1400s
Vertical security locks with tipping dead bolt
SERIEs 1400 E 1400s
The most reliable solution for a top security locking.
One to three locking points lock, self-centering tipping dead bolt with lock-picking system.
DESIGNED AND TESTED ACCORDING TO EUROPEAN STANDARD UNI EN 12209:05

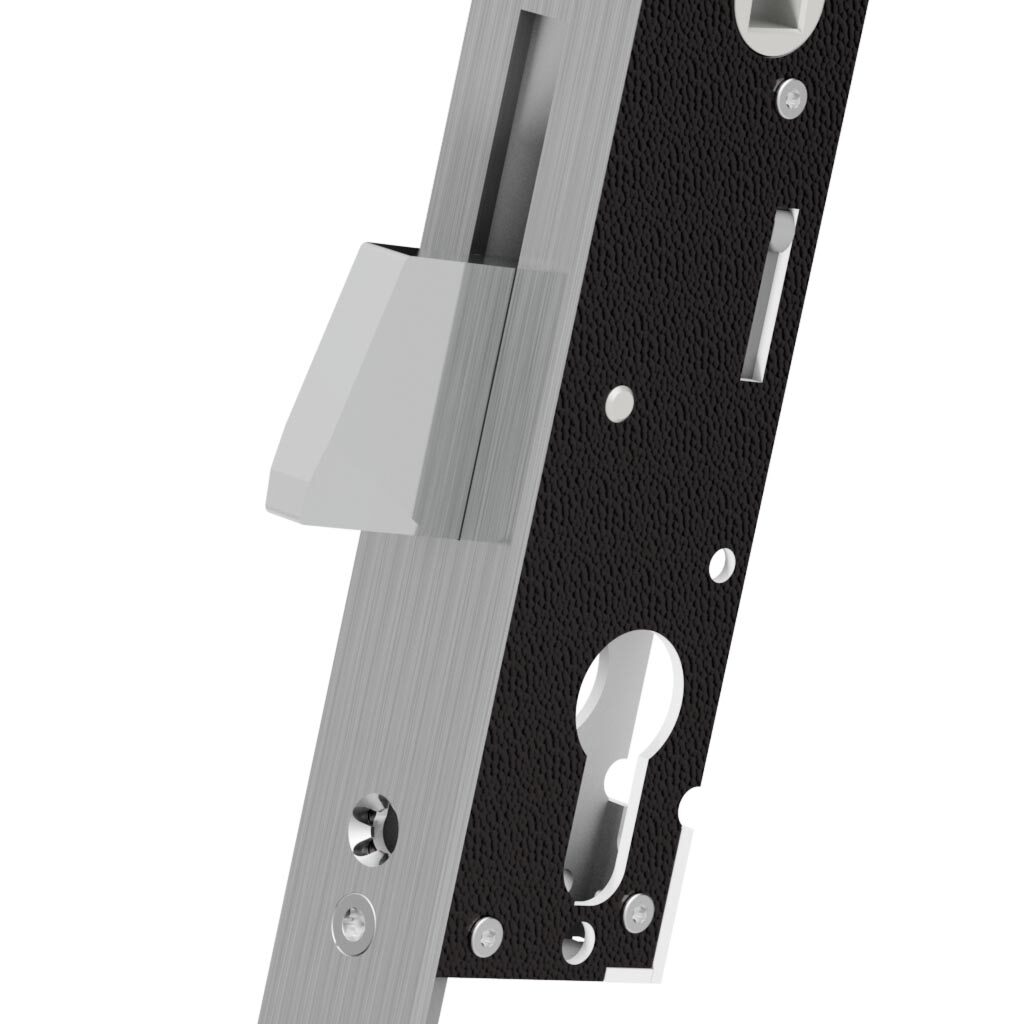

the self-centering dead bolt sorts 24 mm, to ensure a secure locking.
Patented lock-picking system.

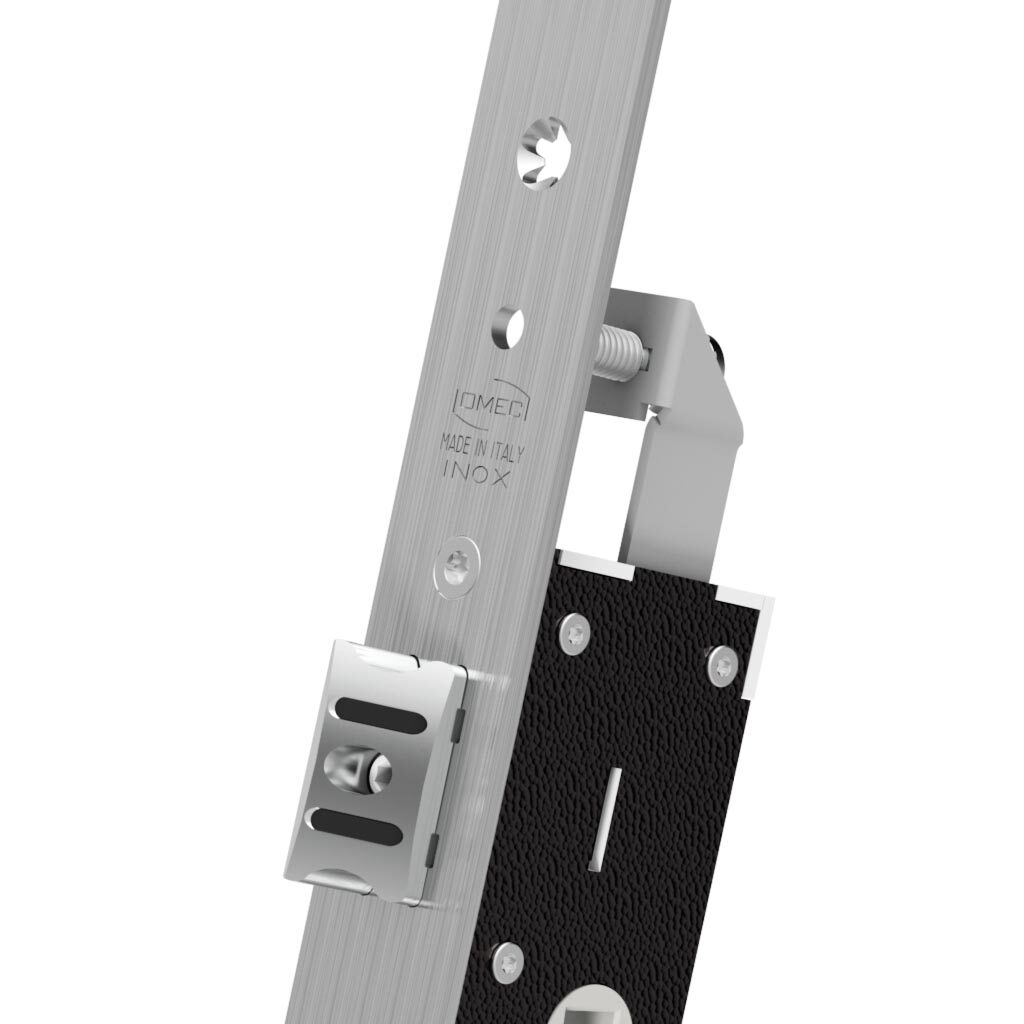

with nylon inserts that guarantee a perfectly silent closure of the door and reduces the use of the striking plates.
Ideal for all thermic and Euro Groove profiles
It reduces the cut-outs on the profiles for the installation of the locks.

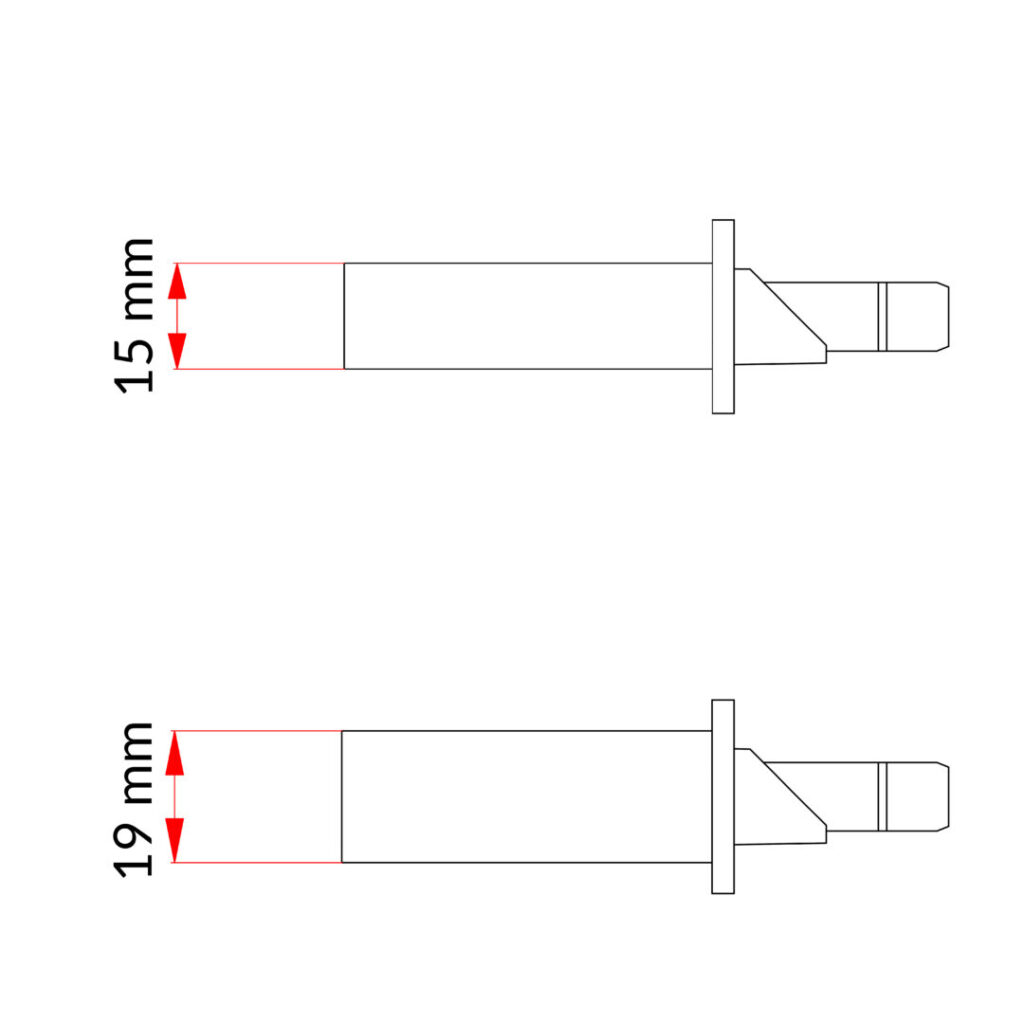

Perfectly interchangeable with previous 19 mm lockcase versions.

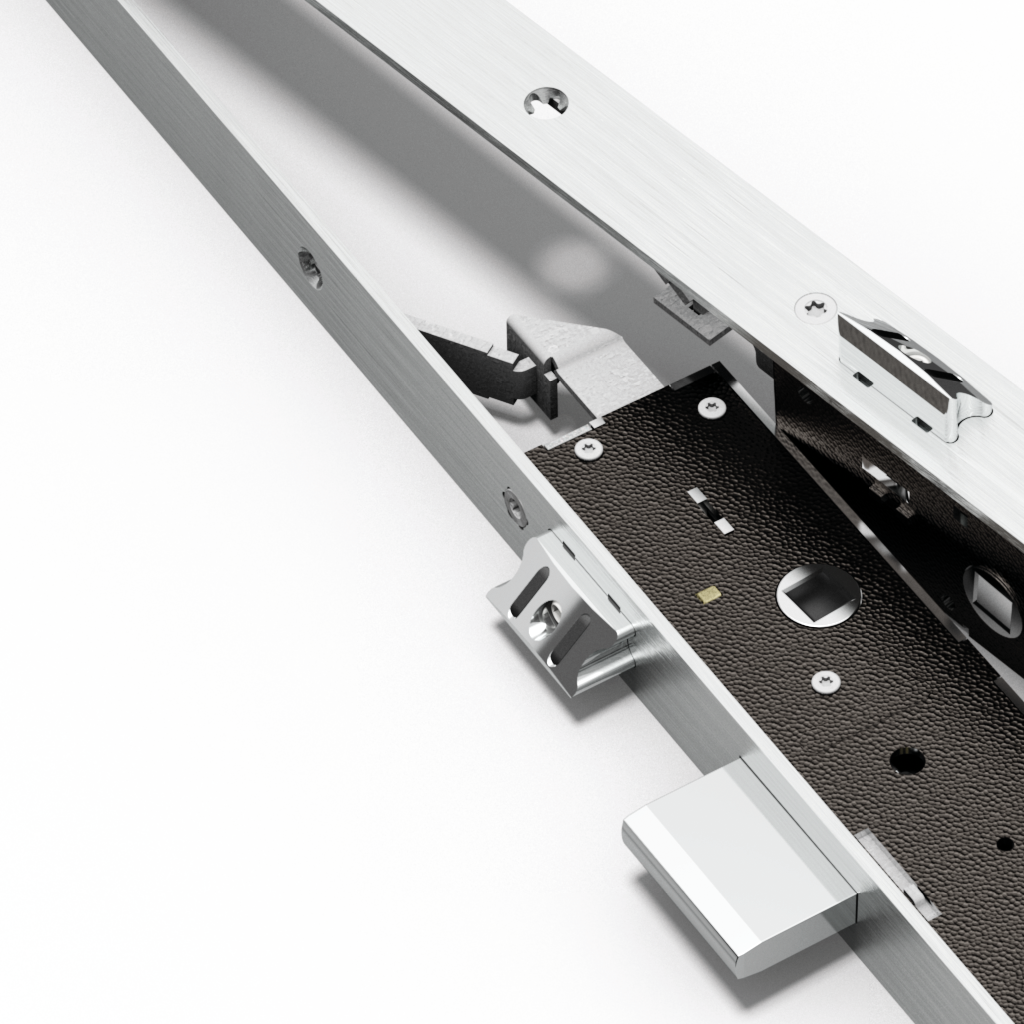

to ensure the best aesthetic and durability even in highly corrosive environments.

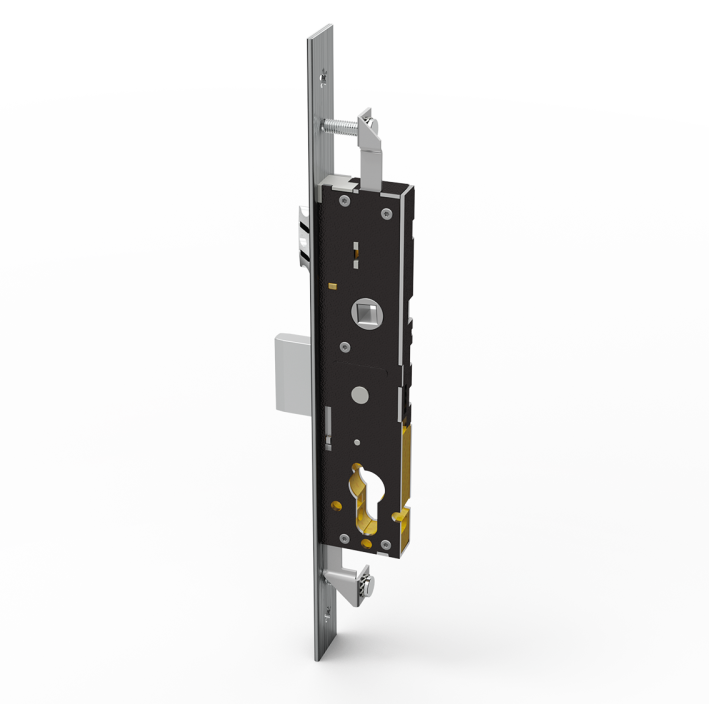

Zinc and plastic-plated steel sealed lockcase and cover, the lockcase is closed to stop profile machining chips from entering into the locks’ mechanism.

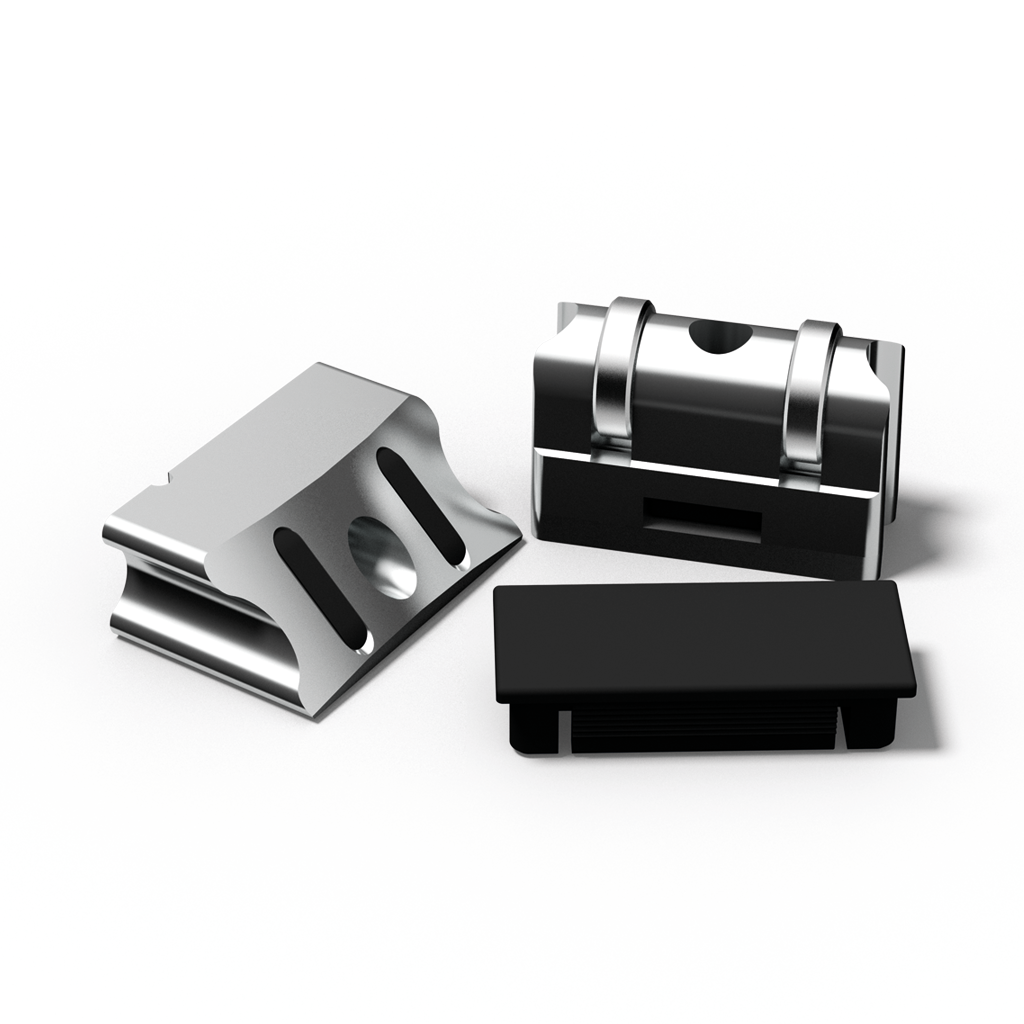

adjustable latch bolt and roller bolt interchangeable with plug for the dead bolt only version, universal to be used on all Omec security vertical locks.

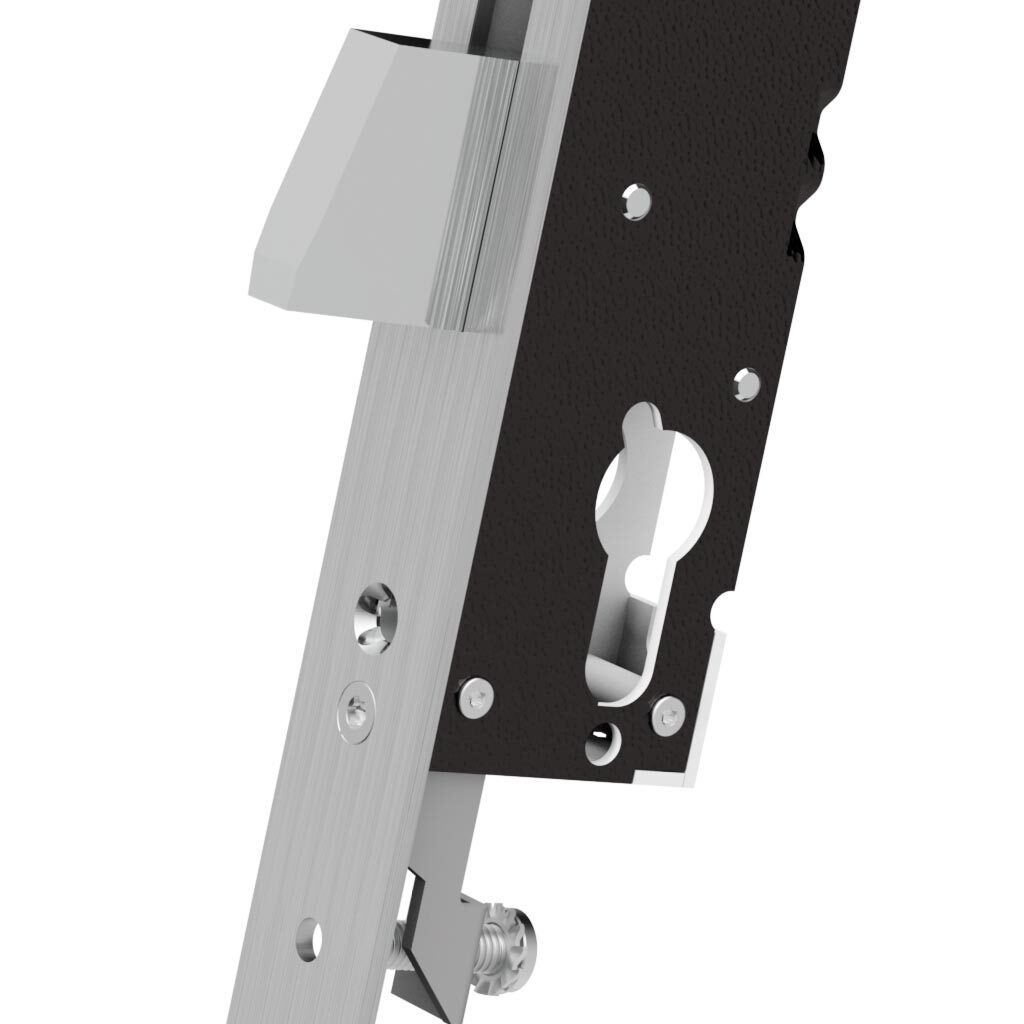

locks series 1400 with 19 mm lockcase can be operated with profile cylinder, cross key cylinder and Swiss cylinder (series 3400)

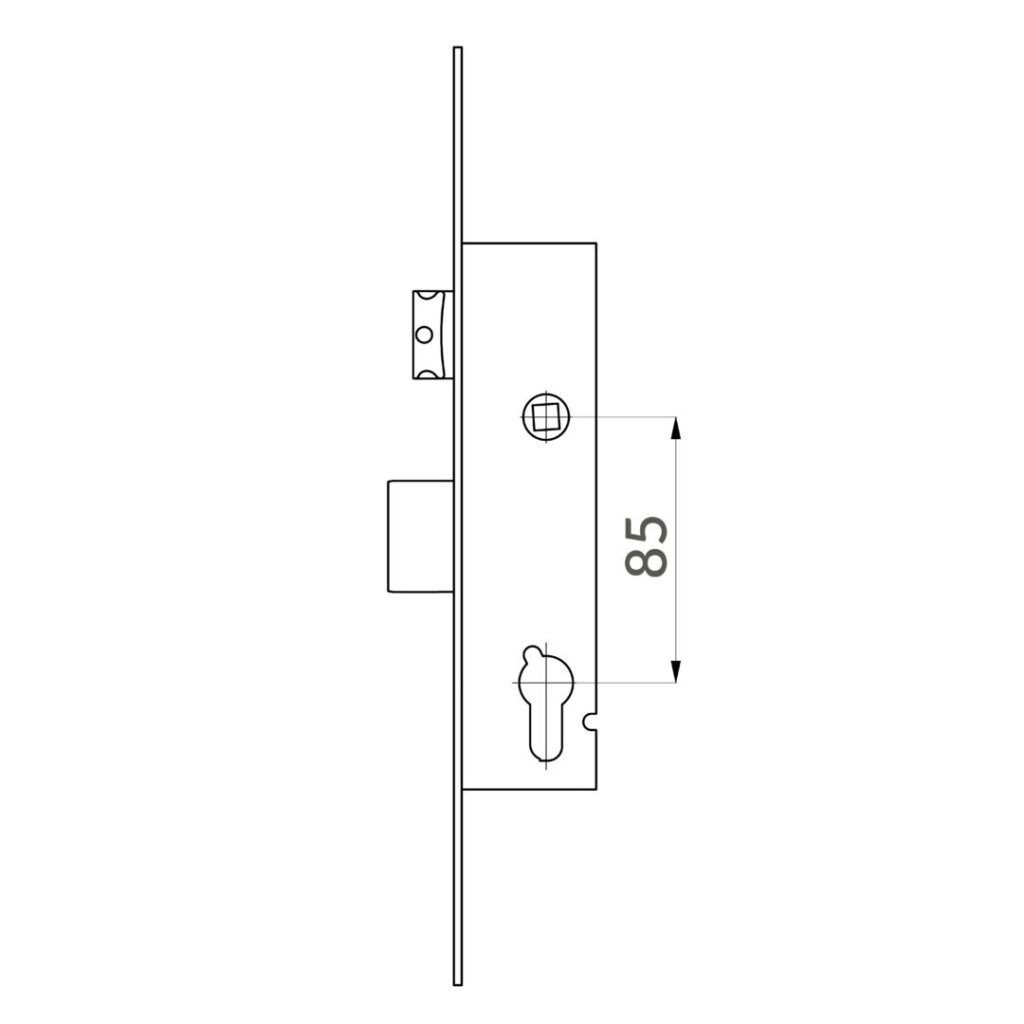

locks 1400 and 1400S are available with centre distance between handle and cylinder 85 mm

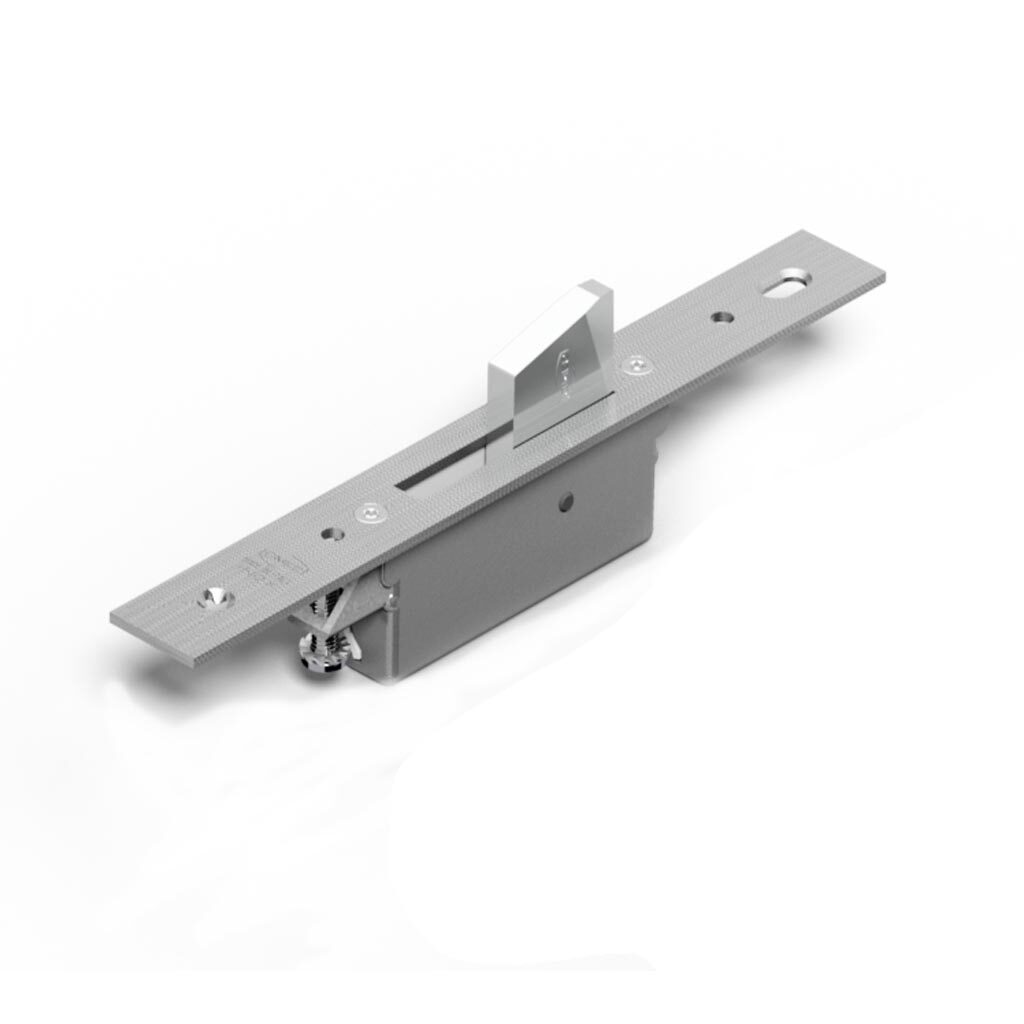

Tipping dead bolts for top and bottom locking points

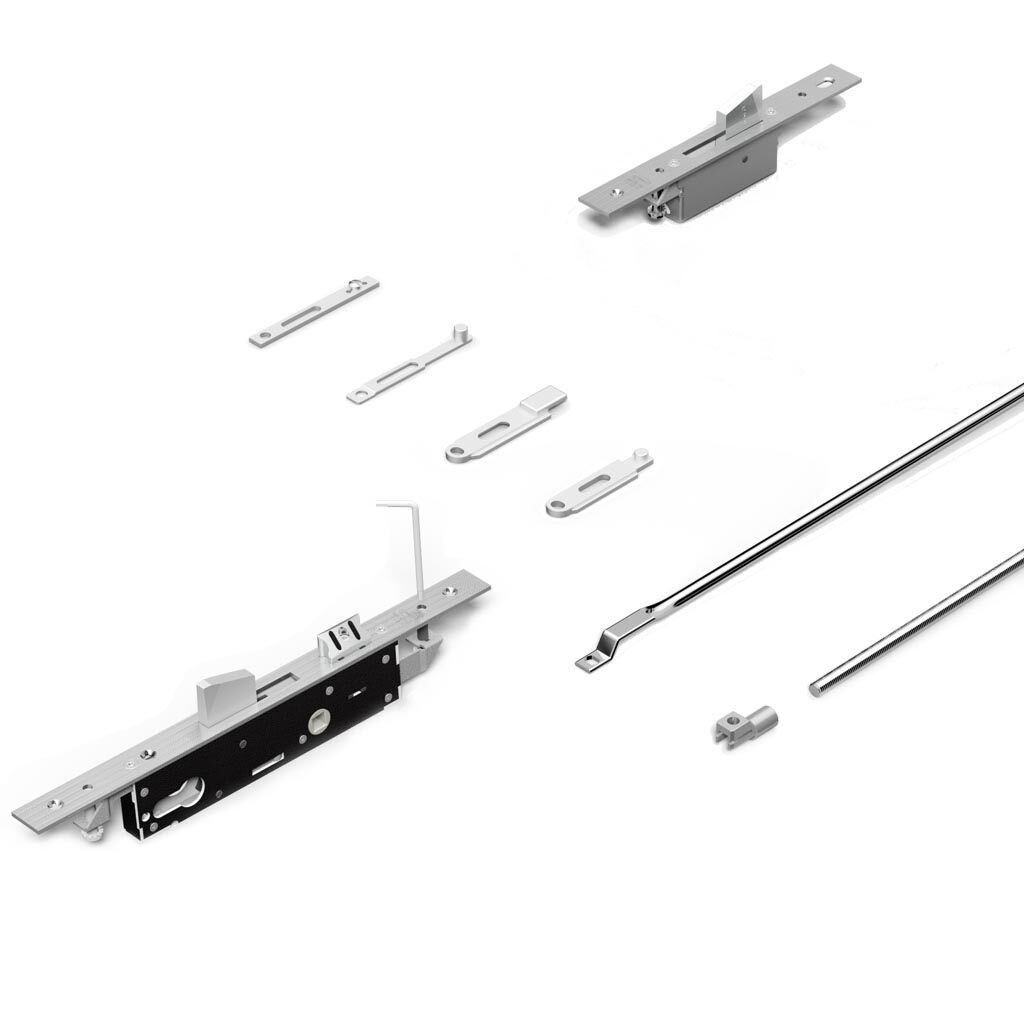

Compatible with Omec kits for additional locking points to meet any needs of security closing with rods and additional latches.
Specific connection kits for Euro Groove and R profiles.
