SERIES 1940-5930-5940
Horizontal security locks
SERIES 1940-5930-5940
Top security horizontal solutions for aluminium profiles, closing from 1 to 3 locking points,
with euro-profile cylinder, cross key cylinder or double-bit key.
Stainless steel forend
Zinc and plastic plated steel case and cover
Nickel-plated steel dead bolt

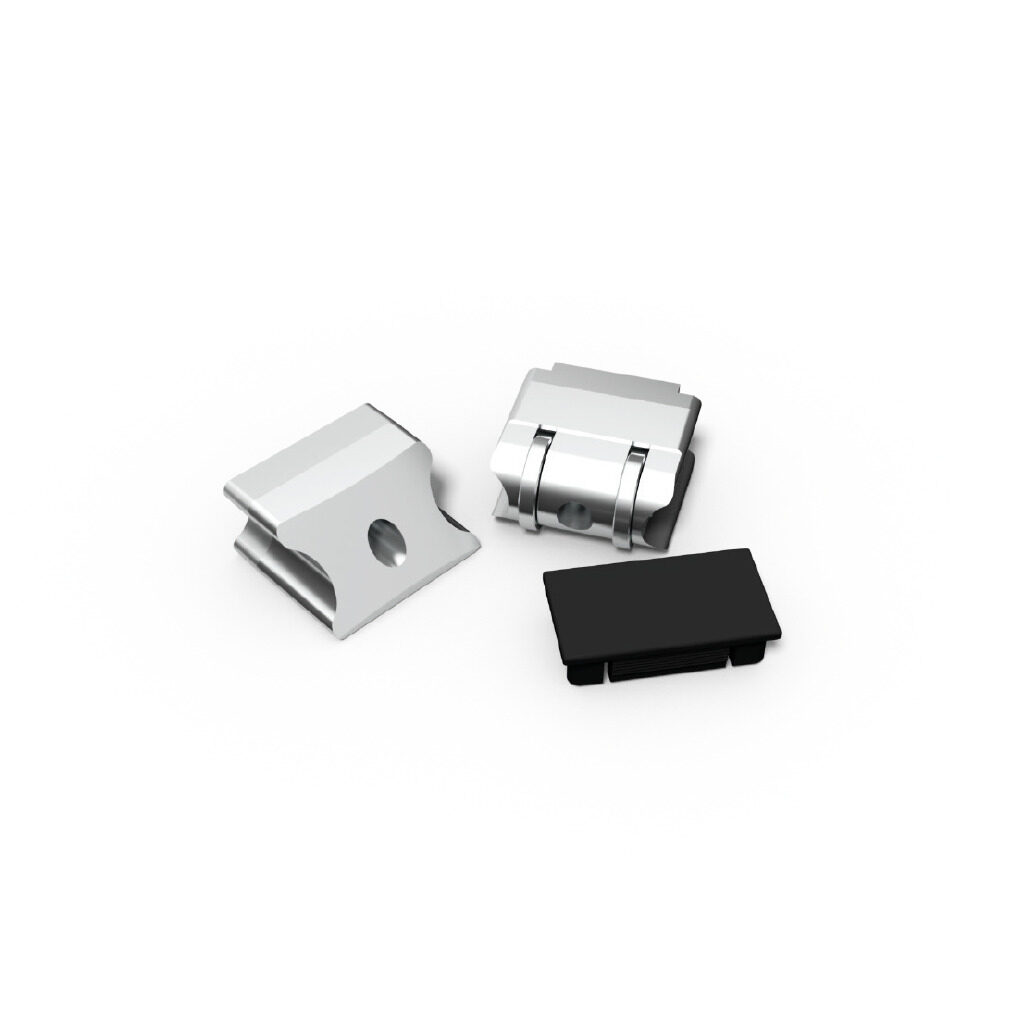

all locks have ~ 5 mm adjustable latch bolt interchangeable with roller bolt and plug

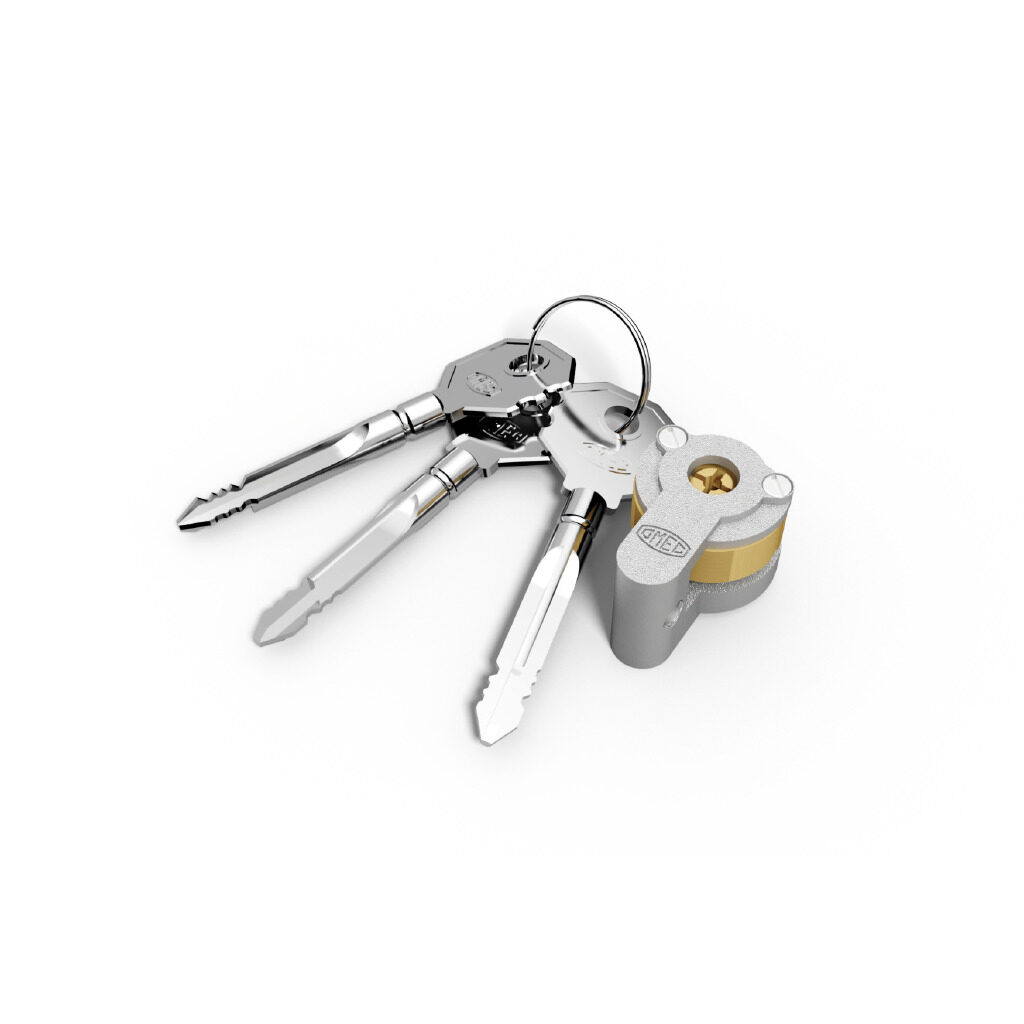

all euro profile cylinders locks can be operated by cross key cylinder
Backset 90 mm – 110 mm
Lockcase depth 21,5 mm
Lockcase height 64 mm
3 throws security dead bolt
Backset 90 mm – 110 mm
Lockcase depth 21,5 mm
Lockcase height 82,5 mm – 64 mm – 57 mm
4 throws security dead bolt
Backset 90 mm
Lockcase depth 21,5 mm
Lockcase height 82,5 mm – 64 mm
4 throws security dead bolt – latch bolt and piston

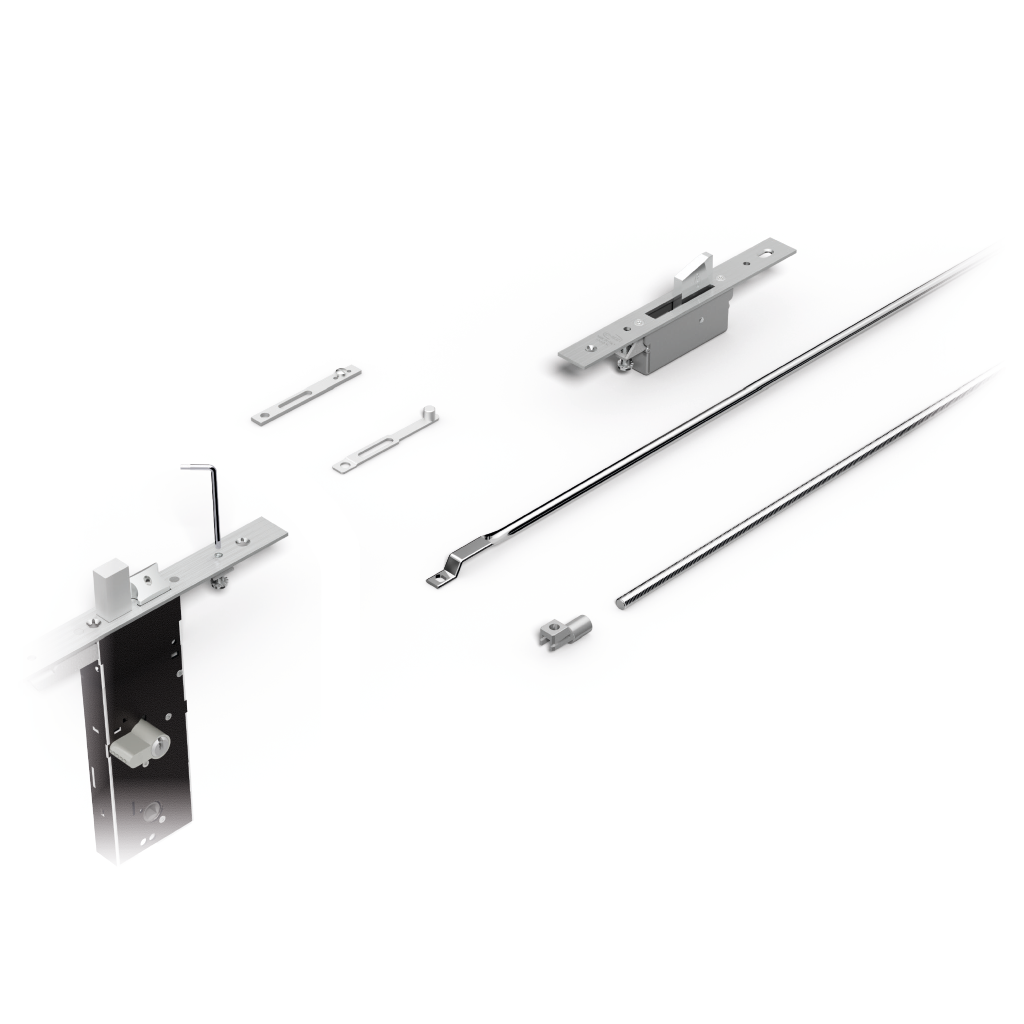

Compatible with all additional locking points kits to satisfy any closing solution needs, up to 5 locking points on doors of any height.
